HOME / TOUCHCOMPUTERS / Elo I-Series 3 with Intel

​

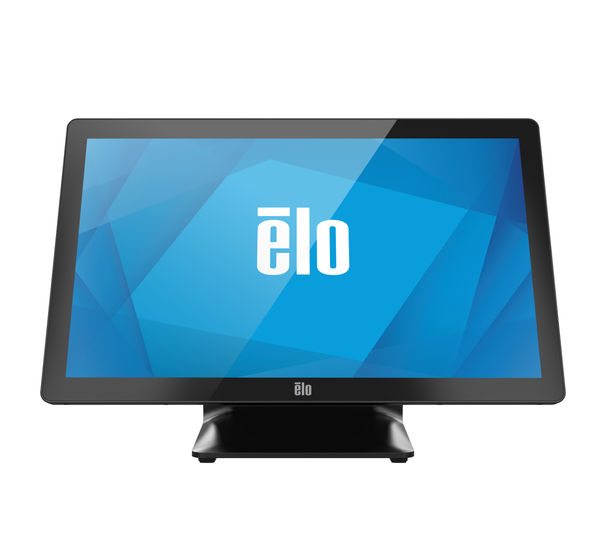

Elo I-Series 3.0 with Intel Touchcomputer - 22"


!
Widget Didn’t Load
Check your internet and refresh this page.
If that doesn’t work, contact us.



​

Building on the success of the I-Series 2.0 for Windows, the all-new I-Series 3 with Intel is an integrated all-in-one touchcomputer solution with a available in sizes ranging from 15 to 24 inches, with or without a factory-fitted stand and a wide selection of processor options to cater for all requirements from basic user-interaction functionality to systems requiring a higher-level of performance and specifications.

​

Elo’s I-Series delivers reliable, enterprise-grade security and performance powered by Intel 12th gen processors including Celeron, Core i3, i5 and i7 in a sleek and durable fixed tablet form factor.  From in-store interaction to signage, point-of-sale to self-service, hospitality, automation controls and corporate office environments, the new I‑Series 3.0 can be easily configured to fit the needs of your business.

​

For added flexibility, the I‑Series 3 is available with or without Microsoft Windows 10 LTSC pre-installed, with all models having been pretested with Linux SuSE, Ubuntu and Red Hat operating systems.



Take advantage of Elo's Edge Connect system which offers a wide assortment of peripheral options that fit flush to the edge of the display for a clean design and extended functionality. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change.

​

Elo are one of the few manufacturers to design and build the complete solution, with touch integrated from the start. Their robust touchcomputers offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI, all backed by a worldwide three-year manufacturers warranty as standard.

​

For further information on this product, or to place an order, please call us on +44 (0)330 555 0155 or use our contact page.

​

​

APPLICATIONS

  • All-in-one interactive solution where space is a premium

  • Self-service

  • Point-of-sale

  • Interactive presentations

  • Kitchen display solutions

  • Check-in systems

  • Industrial automation

​

​

SPECIFICATIONS

  • All-in-one touchscreen display with integrated computer system

  • 10-point TouchPro® (Projected Capacitive) touch technology

  • 21.5" inch display

  • Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total viewing angle

  • 212.5nits brightness (typical)

  • 14ms response time depending on model

  • 1000:1 contrast ratio depending on model

  • Choice of 12th Generation Intel Celeron, Core i3 and Core i5 processors

  • Choice of 128Gb or 256Gb SSD storage with DDR5 memory

  • Gigabit LAN, 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz + Bluetooth 5.2

  • Internal speakers

  • VESA-100 mounting points

  • Fanless, IP54-rated design

  • Available with Windows 10 pre-installed or no O/S for Linux SuSE, Ubuntu and Red Hat deployments

  • Three year manufacturers warranty

​

​

PART NUMBERS

  • E706811  -  Elo I-Series 3, Intel® Celeron® 7305L, 4Gb, 128Gb, 21.5", TouchPro®, No O/S

  • E707003  -  Elo I-Series 3, Intel® Celeron® 7305L, 4Gb, 128Gb, 21.5", TouchPro®, Windows 10

  • E707378  -  Elo I-Series 3, Intel® i3-1215UL, 8Gb, 128Gb, 21.5", TouchPro®, Windows 10

  • E707193  -  Elo I-Series 3, Intel® i3-1215UL, 8Gb, 128Gb, 21.5", TouchPro®, No O/S

  • E707769  -  Elo I-Series 3, Intel® i5-1245UL, 8Gb, 128Gb, 21.5", TouchPro®, Windows 10

  • E707579  -  Elo I-Series 3, Intel® i5-1245UL, 8Gb, 128Gb, 21.5", TouchPro®, No O/S

  • E457278  -  Elo I-Series 3, Intel® i5-1245UL, 16Gb, 256Gb, 21.5", TouchPro®, Windows 10

  • E457467  -  Elo I-Series 3, Intel® i5-1245UL, 16Gb, 256Gb, 21.5", TouchPro®, Windows 11 Pro

  • E155493  -  Elo I-Series 3, Intel® i5-1245UL, 8Gb, 256Gb, 21.5", TouchPro®, No O/S

  • E457084  -  Elo I-Series 3, Intel® i5-1245UL, 16Gb, 256Gb, 21.5", TouchPro®, No O/S

  • E708162  -  Elo I-Series 3, Intel® i7-1265UL, 16Gb, 256Gb, 21.5", TouchPro®, Windows 10

  • E707974  -  Elo I-Series 3, Intel® i7-1265UL, 16Gb, 256Gb, 21.5", TouchPro®, No O/S

​

  • E606708  -  Elo I-Series 3, Intel® Celeron® 7305L, 4Gb, 128Gb, 21.5", TouchPro®, No O/S, No stand

  • E606903  -  Elo I-Series 3, Intel® Celeron® 7305L, 4Gb, 128Gb, 21.5", TouchPro®, Windows 10, No stand

  • E607299  -  Elo I-Series 3, Intel® i3-1215UL, 8Gb, 128Gb, 21.5", TouchPro®, Windows 10, No stand

  • E607093  -  Elo I-Series 3, Intel® i3-1215UL, 8Gb, 128Gb, 21.5", TouchPro®, No O/S, No stand

  • E607709  -  Elo I-Series 3, Intel® i5-1245UL, 8Gb, 128Gb, 21.5", TouchPro®, Windows 10, No stand

  • E607503  -  Elo I-Series 3, Intel® i5-1245UL, 8Gb, 128Gb, 21.5", TouchPro®, No O/S, No stand

​

​

COMPATIBLE WITH

  • E324341  -  Elo 1002L, non-touch

  • E155834  -  Elo 1002L, TouchPro®

  • E683595  -  Elo 1302L, TouchPro®

​

​

WARRANTY AND OPTIONS

Three year manufacturers warranty as standard, extendable to five years as below

  • E819598  -  4 year warranty coverage

  • E819795  -  5 year warranty coverage

  • E820186  -  3 year warranty coverage + Advance Unit Replacement (AUR)

  • E820388  -  4 year warranty coverage + Advance Unit Replacement (AUR)

  • E820582  -  5 year warranty coverage + Advance Unit Replacement (AUR)

​

​

ACCESSORIES

  • E001002  -  Elo Magnetic Stripe Reader (MSR)

  • E134286  -  Elo Fingerprint Scanner

  • E384627  -  Elo 2D Barcode Scanner (Black - SE4720)

  • E245047  -  Elo 2D Barcode Scanner (Black - SE4107)

  • E201494  -  Elo Webcam

  • E134699  -  Elo 3D Webcam



  • E066148  -  Elo PCAP Stylus Pen

​

  • E375343  -  Elo EMV Cradle for MagTek eDynamo

  • E586981  -  Elo EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB)

  • E710930  -  Elo EMV Cradle for Ingenico RP457c (with BT and USB)



  • E644767  -  Elo Status Light (Micro-USB Connectivity)



  • E673037  -  Elo RFID

​

  • E894719  -  Elo Elo Edge Connect™ Speaker Bar, black

​

  • E845269  -  Elo 24V 180W power supply



  • E466053  -  Elo 8GB 4800MHz DDR5 SO-DIMM memory chip

  • E466237  -  Elo 16GB 4800MHz DDR5 SO-DIMM memory chip

  • E466430  -  Elo 32GB 4800MHz DDR5 SO-DIMM memory chip

  • E466613  -  Elo 128GB NVMe SSD drive

  • E466803  -  Elo 256GB NVMe SSD drive

​

  • E467190  -  Elo Tabletop Stand for 17"/21.5" displays

​

  • E969524  -  Elo Elo 2ft USB-C cable

  • E710364  -  Elo Elo 6ft USB-C cable



​

ADDITIONAL RESOURCES

​

​

ORDERING

Any pricing listed online is correct at time of writing but may be due to daily pricing fluctuations.  We recommend that anyone interested in purchasing these items, or requiring a quote, to contact us in the first instance to get our best pricing and also details of product availability.

​

As Elo Elite-level partners, we get significant discounts against non-Elite partners and we pass those saving on to our customers.  We can also request additional pricing support from Elo for enquiries of high value, competitive deals against other manufacturers, continuous orders and large Government orders.

​

We offer trade discount for system integrators, resellers, charities and Government buyers.

​

For further information, or to place an order, please call us on +44 (0)330 555 0155 or use our contact page.

​
